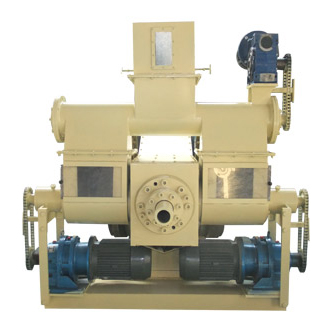

Biomass Briquette Press

Biomass briquette machine are used to produce high quality and good density fuel briquettes from agro-forestry waste like wood chips, sawdust, wheat straw, rice husk and other biomass material. The biomass briquette machine we produced are suitable for customers from agro-forestry countries and biofuel producer. We can provide you designs and installation at complete project of biomass briquetting plant at any capacity.
Usually this biomass briquetting plant include crushing machine, drying machine, biomass briquette press and packing machine.

Advantages of our Briquetting Machine Press System
• Briquettes in accordance to DIN 51731
• Briquettes of uniform size and hardness
• Due to the new form, the briquettes can be easily stacked for shipment, neat packaging, more efficient utilization of storage space.
• Possible to feed materials up to 40 mm grain size.
• Not sensitive to foreign substances
• Possibility of adjusting to higher levels of performance
• Rugges construction, mounted on a massive frame and ready to switch on, no foundation needed.
• Performance metered by an electronically regulated screw conveyor, also for various kinds of waste materials.
• Low electrical load due to a high efficiency hydraulic system with exceptionally low operating noise.
• Low wear because counterpressure is not created by friction.
• In cold starting, no adjustment necessary; for this reason, automatic interval operation possible.


Complete Project of Biomass Briquette Plant

biomass briquette pressflash dryerbiomass hammermill

Process of Briquetting:
1. Crushing machine prepare suitable size raw material for biomass briquetting plant. According to different raw material, users should use suitable crushers. Hammer mill is to crush small sized material with diameter no more than 50mm. Such like tree branck, tree trimmings, wood chips, wood cuttings, cotton stalk, corn stalk, wheat straw etc. Plate type crusher is to crush tree logs with diameter less than 200mm to 3-5mm at any length.
2. Drying machine prepare suitable moisture raw material for biomass briquette press. For briquetting press, it is only to control the moisture of raw material at a reasonable range that can make good reasult of biomass briquettes. Or the briquettes will be broken because of too loose or too dry.
3. Briquetting Press make the biomass material into briquettes. After the well preparement of raw metarial, briquetting is easy at right operation of biomass briquette press. When machine rise to over 300 centigrade, the material can be feeding continuously into briquetting press. First, the color of briquettes may be a little dark even black, but after a while, the color will be light to normal level coming out of biomass briquette machine.
4. Packing machine pack final biomass briquettes for commercial reselling. They can be wrapped with a layer of plastic film. By thermal shrink wrapping machine, biomass briuqttes can be packing into a bundle tidily.


biomass briquetting plant

Flowchart of Biomass Briquetting Plant

The Final Products of Biomass Briquette Plant

Biomass briquette plant can make cylinder,hexagon or square shapes biofuel briquettes,of which the diameters range from 30mm to 100mm or even bigger. The following pic of biomass briquettes are called unmatured bars. The bars can be also further processed by charcoalized in kiln for BBQ.

biomass briquettes

What kind of Raw Material can Make Biomass Briquette?


Raw Material for Biomass Briquette Press:

Theres is a wide range agro-Forestry waste that can be used for biomass briquette plant such as sawdust briquetting, all the type of biomass material including:


Wood • Wood chipsv Wood shavings • Sawdust • Wheat straw • Rice husk • Sunflower husk • Peanut-shell • sugar cane bagasse • Maize stalk • Corncob • palm fruit bunch • Cotton Stalks • Coffee Husk • Paddy Straw • Tobacco waste • Mustard Stalk • Jute waste • Bamboo Dust • Tea waste • Soybeans husk • Forestry wastes and many other Agro wastes.

Tree Trimmings
Tree Trimmings
Wood Shavings
Wood Pieces
Tree Trimmings
Wood Shavings
Wheat Straw
Peanut Shell
Empty Fruit Bunch
Wheat Straw
Peanut Shell
Empty Fruit Bunch
Rice Husk
Corn Cob
Maize Stralk
Rice Husk
Corn Cob
Maize Stralk
Rice Husk
Corn Cob
Maize Stralk
Sunflower Seeds Husk
Waste Carton
Wood Chip/Paring
