Drying System
What is the egg tray drying machine?
Egg tray drying system is a process in the egg tray production line, after paper pulping and forming. An egg tray dryer is a piece of equipment specially used for drying pulp or paper egg trays. It uses heat and air circulation to quickly remove moisture from the egg tray, ensuring it remains strong and dry during the production process. The equipment is usually equipped with an intelligent control system that can automatically adjust temperature and drying time to improve efficiency and quality. It plays an important role in the egg tray production line, helping to improve product durability and reduce losses.
AGICO Egg Tray Drying Systems
According to the output of egg tray production lines and the specific needs of customers, AGICO offers three egg tray drying systems: natural drying system, brick kiln drying system, and automatic metal drying system.
| Drying System | Length(m) | Output(p/h) |
| Natural drying | Customizable | 1000-2500 |
| Brick kiln drying system | 40-45 | 1000-2000 |
| 50-55 | 2000-4000 | |
| 60-65 | 4000-10000 | |
| Multilayer metal drying system | 25 | 1000-10000 |
| Single-layer metal drying system | 40-45 | 1000-2000 |
| 50-55 | 2000-4000 | |
| 60-65 | 4000-10000 |
Automatic Metal Drying System

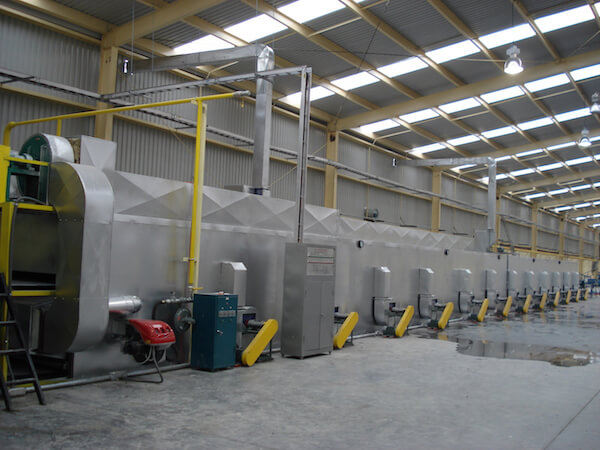

Single layer metal drying line
It has only one layer, so the equipment covers a large area and the output is relatively small. It is suitable for customers who need a medium-sized production scale but has high requirements for automation.
- Business Scale: medium scale and large scale
- Drying Temperature & Time: 180-280℃ with 15-25 minutes
- Fuel Types: natural gas, diesel, LNG, LPG, electricity, and so on
- Height & Length: single layer with no more than 70m long, 2-6 layers with about 4-5m high and 25m long
- What We Offer: burner, belt conveyor, PLC system, air blower, drive system, temperature indicator, integral steel structure, free layout design, and so on
- Applicable Egg Tray Production Lines: fully automatic egg tray production line (1000-10000pcs/h)
- Suitable For:Clients who have sufficient funds, Clients who have limited land space for production
Multilayer metal drying line
It can be designed with 2-6 layers. Even with the egg tray machine, the occupation space is very small, which is suitable for large-scale and automatic production.
Advantages:
- Almost no worker needs
- Not affected by the weather and moisture
- Easy installation, maintenance, and operation
- Low energy consumption, reduced by about 30%
- Nice appearance, large output, fully automatic, and ultra-high efficiency
Civil engineering drying line
This is one of the most common drying methods used in fully automatic egg tray production lines, primarily due to its cost-effectiveness. Customers only need to source bricks to construct this drying line. The direct-burning dryer can use various heat sources, such as coal, gas, diesel, steam, or heat transfer oil. A key characteristic of this civil engineering drying method is that it requires more space, with a longer setup distance. However, we provide customers with detailed guidance on construction and energy-saving techniques. Despite its larger space requirement, this method is more affordable compared to metal drying systems.

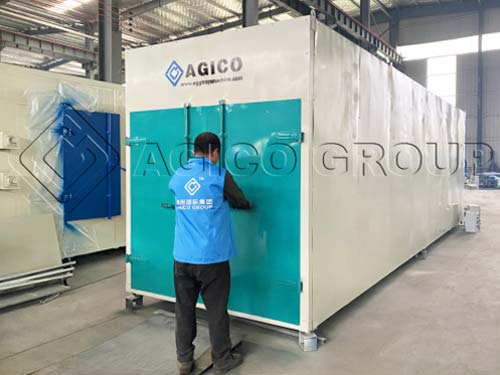

Box-type egg tray dryer
This is a box-type egg tray dryer, ideal for customers with smaller production volumes of less than 2,500 egg trays per hour. Its compact design allows it to fit within a single container, simplifying installation without the need for complex local construction. Upon receiving the equipment, customers can quickly install and start operations, making it especially beneficial for those in regions with a rainy season. For customers who already have drying equipment but want to ensure year-round production during rainy periods, the box-type dryer serves as a reliable alternative. It can be powered by various fuel sources, including coal, diesel, natural gas, and liquefied petroleum gas, based on customer preferences. If you are interested, please contact us, and we will customize the solution according to your production needs and site conditions.
Get great discounts here

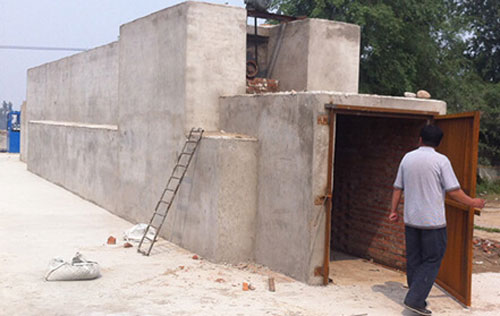

Brick room with carts (trolley drying)
When the egg tray drying method involves a brick room with carts, it is referred to as a semi-automatic egg tray production line. This process requires more workers to transport the egg trays using carts for drying. The heat in the brick room can be recovered to reduce energy consumption. One advantage of this method is its low cost, with the added benefit of being unaffected by weather conditions.

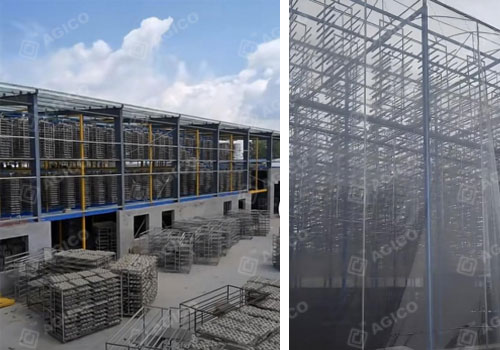

Tunnel type hanging drying line
The drying tunnel features an air distribution system that fills the chamber with hot air, causing moisture in the product to evaporate. Once dried, the product is transported out using either a cart or a hanging basket. This drying method provides numerous advantages, such as high production capacity, low energy consumption, and efficient performance, while allowing for precise control over the quality of the final product. Moreover, it offers flexibility in fuel options, accommodating various energy sources like coal, wood, natural gas, biofuels, steam, and thermal oil.

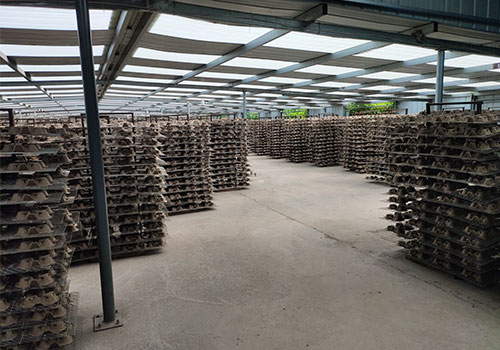

Natural drying
Natural drying refers to placing semi-wet egg trays outdoors or indoors to evaporate the moisture at a normal temperature. It requires workers to manually deliver egg trays to the drying site with trolleys and then place egg trays on the ground or the drying rack.
- The egg tray production with natural drying is generally called manual egg tray production line or manual egg tray machine.
- Natural drying is suitable for small production egg tray machine, such as 1-sided egg tray machine.
- Countries and regions with plenty of sunshine can be chosen, such as Africa.
- Choosing natural air drying can save some investment, which is very suitable economically. However, it is not recommended for customers with large production egg tray machine or no place to dry.
