Packing System
What Is Egg Tray Packaging Machine?
The egg tray packaging machine, also known as the egg tray packaging system, is typically positioned after the egg tray dryer in the egg tray production line. Its primary function is to efficiently pack fully dried egg trays in batches, streamlining the process.When paper tray products are produced in large quantities on a pulp molding automatic production line, manual stacking becomes challenging and labor-intensive. An automatic stacking machine can neatly stack the products coming out of the drying line and count them automatically, reducing the labor intensity for production workers and minimizing the number of personnel needed in the production workshop.

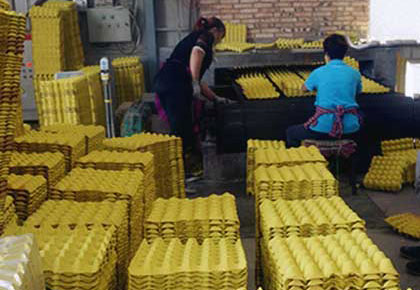

Manual Packaging
Automatic Packaging
Main Equipment Of AGICO Packaging System
Hot Press Machine
The hot press machine is commonly used to improve the surface smoothness of pulp molded products. It maintains a consistent temperature automatically once set, operating at high temperatures to evenly press products, ensuring uniform thickness. Additionally, it can trim rough edges during the process. The mold size and design can be adjusted to suit different pulp products, making it easier to release them from the molds. Besides egg trays, the hot press machine is also suitable for producing deeper paper trays, such as fruit trays, cup trays, and electronics trays. In a packaging system, the use of a hot press machine is optional and depends on the customer's quality requirements for the final product.- Energy-saving: the motor only needs 2.2 kW.
- Low noise: the working noise is less than 60 decibels.
- Convenient usage: the equipment is easy to operate and clean.
- Quality accessory: most accessories are imported from Taiwan and France.
- High precision: the parallel accuracy of upper and lower working surfaces is within 0.03mm.

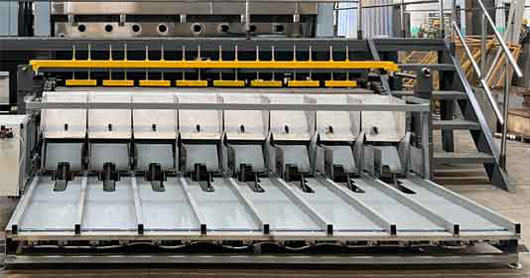

Automatic Counter
We typically install a counter at the end of the conveyor belt to automatically and accurately tally the finished products. This counter often works in conjunction with a packer to create an automatic stacking system. By implementing this automatic stacking system, the productivity of a pulp molding production line significantly increases without adding to the workload. The counter is designed for easy installation and boasts a long service life.

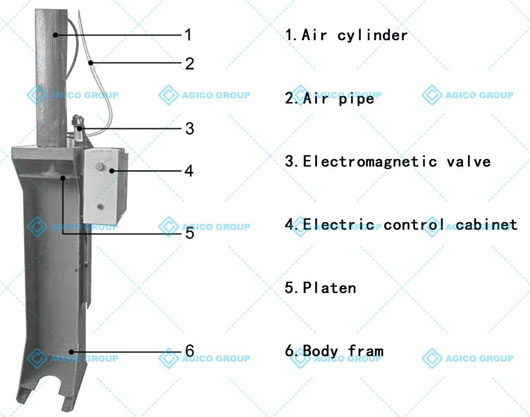

Egg Tray Packer
The egg tray packer is a key piece of equipment in the packing system, operating by applying pressure to a specific number of paper trays to make them more compact and easier to package. This pressure is generated using hydraulic force. With its automatic design, the packer significantly enhances the efficiency of the packing system.

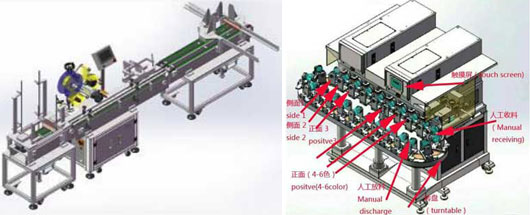

Labeling line
In addition to egg tray stackers and packers, we offer a specialized egg carton labeling line designed for efficient labeling of egg cartons. This labeling machine is suitable for applying labels to egg boxes with a certain level of hardness and can automatically handle material separation, labeling, and collection. It features a customized three-head feeding mechanism, significantly boosting production capacity. This equipment is versatile and can be used for labeling flat surfaces and corners of egg boxes, as well as for fruit boxes, fresh produce boxes, and other blister-pack products.- Energy-saving: the motor only needs 2.2 kW.
- Low noise: the working noise is less than 60 decibels.
- Convenient usage: the equipment is easy to operate and clean.
- Quality accessory: most accessories are imported from Taiwan and France.
- High precision: the parallel accuracy of upper and lower working surfaces is within 0.03mm.
Egg Carton Printer
Similar to the egg carton labeling machine, the egg carton pad printer is used for printing patterns or designs on the surface of egg cartons.Its specifications are as follows:
- Capacity: about 700-900pcs/hr;
- Color: 4-6 colors, different sides
- PLC control
- Plate size: 150mm*250mm
- Power: 2000W
- Voltage: 220V
