Pulp Molding Dies
Pulp molding dies, also referred to as pulp molds or paper tray molds, are essential, consumable components in pulp molding machines. For standard molded paper tray products like egg trays and cup holders, the molds feature simple structures and can be easily swapped when replacements are needed. However, for industrial padding and cushioning applications, the shapes and sizes of these molds vary significantly. A key requirement is that the finished paper tray product maintains consistent thickness throughout, regardless of its specific shape.

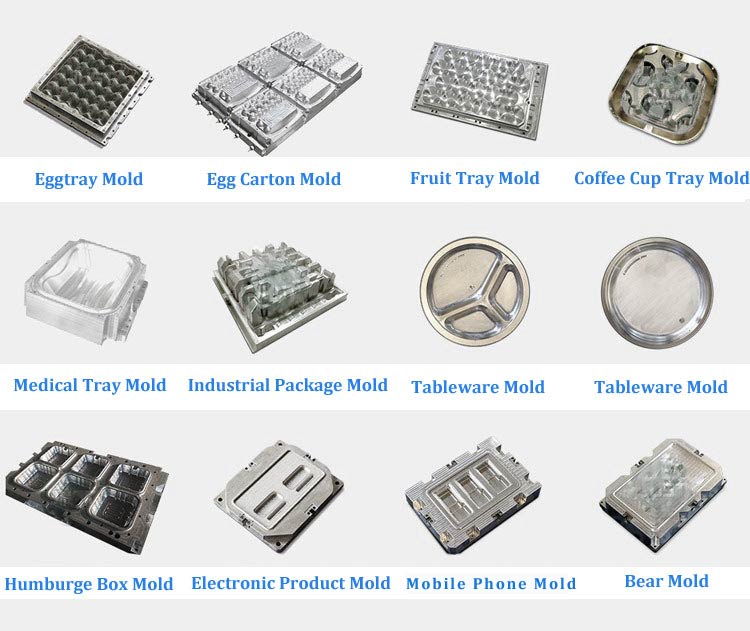

Pulp Molding Dies Types
What is the role of pulping mold
- Shape Formation: The mold shapes and sizes egg trays to accommodate various types of eggs, featuring egg pockets and edge designs that securely hold each egg in place.
- Quality Stabilization: The mold ensures uniform shape, structure, and dimensions across all egg trays in a production batch, minimizing defects and ensuring that each tray meets quality standards.
- Efficiency Enhancement: By working in tandem with the egg tray machine, the mold supports high-efficiency production, forming multiple egg trays simultaneously. This setup reduces production costs, increases output, and ultimately boosts profitability for customers.
AGICO Egg Tray Mold Die
Our egg trays and egg cartons can be designed and customized to different quantities and specifications according to customer requirements, such as egg trays for 30 eggs per pcs, 20 eggs per pcs, cartons for 4 eggs per pcs, 9 eggs per pcs, 10 eggs per pcs, 12 eggs per pcs, 18 eggs per pcs, etc.
Here are most frequently used egg tray dimension used for egg packing:
Here are most frequently used egg tray dimension used for egg packing:
| Packing egg range |
Dimensions of egg tray(mm)
|
|---|---|
| medium-sized egg | 290*290 |
| Large-sized egg | 300*300 |
| extra small- sized egg | 280*285 |
| medium-sized egg | 295*295 |
| Medium and small sized egg | 290*295 |
| Large-sized egg | 310*310 |
| Large-sized egg | 310*310 |
| Large-sized egg | 295*295 |
| Large-sized egg | 298*298 |
| medium-sized egg | 297*297 |
| medium and large-sizedegg | 298*300 |
| small- sized egg | 285*290 |
| Large-sized egg | 305*305 |
| extra large-sized egg | 320*320 |
| small- sized egg | 292*292 |
| extra small- sized egg | 280*280 |
Order your Egg Tray Mold now
Egg Tray Mold Materials

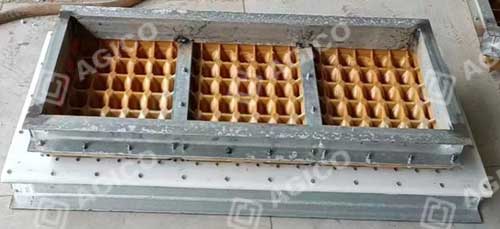

Plastic Mold
Low cost,3-5 years

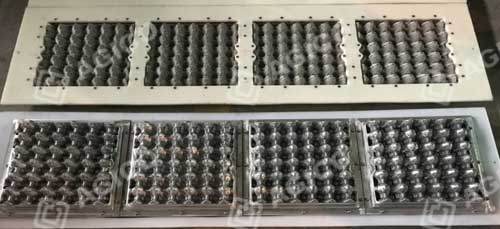

Aluminum Mold
Cost –Effective, High Precision, better-looking, long service life: 8-10 years, can be customized

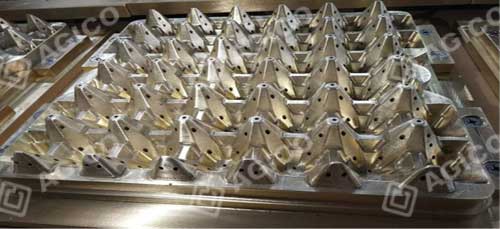

Copper Mold
Higher cost, High accuracy, service life: 12-15 years, Good wear resistance, good anti-rust and corrosion resistance
| Product Name | Egg tray Mold |
|---|---|
| Material | Plastic/Aluminum/Copper |
| Application | Egg Tray Forming Machine |
| Warranty | 12 months |
| Condition | New |
| Specification | 30 Cells |
| 30 Cells | Qingdao /Tianjin Port, China |
| Payment terms | T/T, L/C or others |

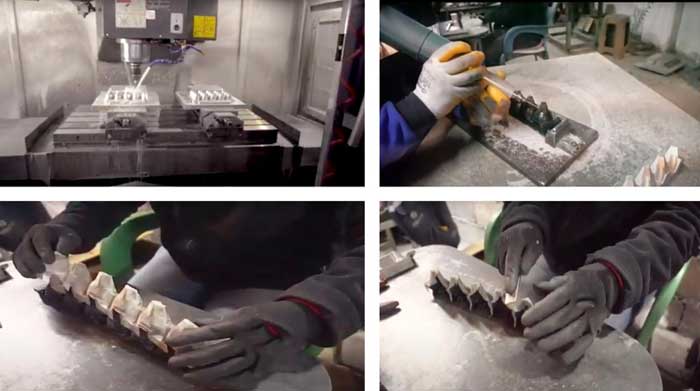

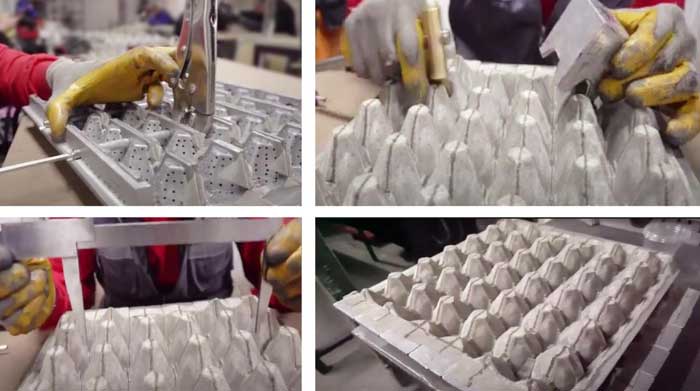

Manufacturing Process Of Pulp Mold Dies
- Design Phase
Designers begin by analyzing and calculating the mold’s usage requirements, and creating preliminary design drawings. Once the initial design is complete, a review process ensures that the structure, size, and other parameters of the mold are reasonable, feasible, and aligned with customer specifications.
- Manufacturing Phase
Based on the finalized design, engineers individually produce the upper mold, lower mold, mold supports, and other components. This process involves various machines, such as milling, drilling, and grinding machines, to achieve precise dimensions and surface finishes. After initial manufacturing, additional treatments like heat treatment and sandblasting are applied to enhance the mold's strength and durability.
- Precision Machining Phase
Precision machining is performed to ensure the mold's accuracy and surface quality meet all specifications. This phase includes planetary grinding, general grinding, electrical discharge machining (EDM), polishing, and more. EDM is especially crucial for achieving accuracy in deep and non-circular holes.
- Assembly & Debugging
Once each mold component meets the specified accuracy and surface standards, the mold is assembled. Debugging, testing, and verification then follow to ensure all parts function smoothly together, achieving optimal performance and surface quality.
Customize your pulp molding die
AGICO aluminum molds typically offer a service life of over 15 years. Additionally, we provide a range of plastic mold options to help customers maximize their return on investment as quickly as possible. By purchasing our egg tray production line, customers can easily switch molds to produce a variety of items, including egg cartons, fruit trays, wine bottle trays, and other disposable industrial packaging products. Our molds are especially suited for minimum production volumes when used with the ZMDT3X1 egg tray forming equipment. If you have specific requirements, we welcome further discussions to meet your needs.

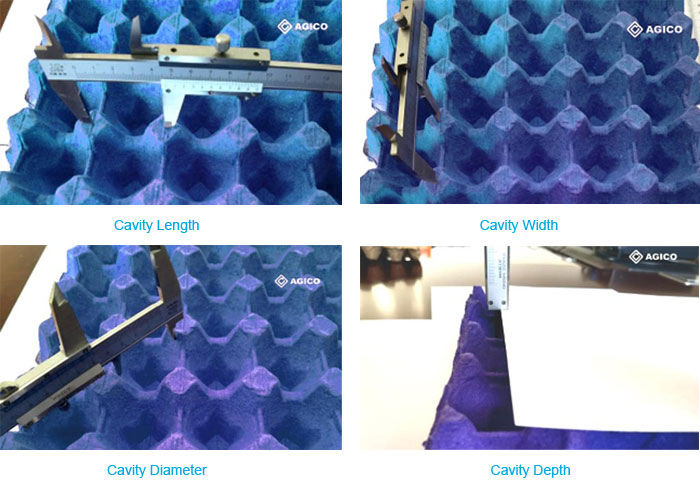

How to measure tray molds
