Track Bolt
Track bolts are used to fix steel rails and rail chairs on rail ties, or fasten rail joints to connect rail tracks. It is also called rail bolt, rail track bolt, or rail anchor bolts. The track is inserted in the rail tie through a hole, and a flange nut is embedded into the bottom side of the tie. The diameter and length of the track bolts are varied to conform to the railway’s standard. ASTM, ASNE, ANSIB, DIN, BS and GB, etc are common standard for track bolts. And the surface of track bolts goes through treatment like plain, black, dacromet, HDG(Hot Dip Galvanized) and Zinc impregnation.

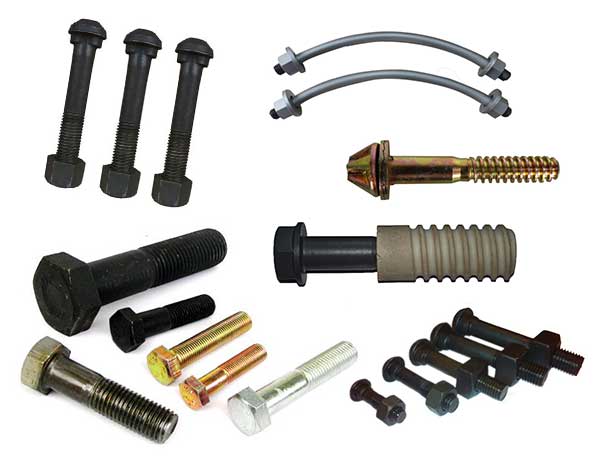

Track bolts can be divided into several types, such as, button head oval neck track bolt, diamond neck track bolt, rail bolt NF F50-008, fish bolt, Russian standard track bolts, clip bolt, clamp bolt and inserted bolt for Russia, anchor bolt, T-bolt clamp and other special bolts, etc. We are able to supply all the these categories. Track bolts are good at preventing loosening by vibration and movement. As they are more tight than track spikes and screw, they are usually used on switch tie plates and sharp curves. If the rail is flat bottomed, it need upper-lipped washers to grip the edge. We are ready manufacture customized rail bolts based on clients’ requirement.
Fish Bolt
 |
Square head fish bolt |
Size: M20, L as ordered Grade: 4.6, 5.6 Standard refers: DIN5903-2 Type B Surface treatment: Zinc plated, hot dip galvanized |
 |
Cup head oval neck fish bolt |
Size: M18, M20, M22, M24, L as ordered Materials: Middle carbon steel Standard refers: AS 1085.4, 6&7 Surface treatment: Black |
 |
British standard track bolt |
Size: Dia. 3/4", 13/16", 7/8",15/16",1", L=3-7/8", 4-3/8", 4-5/16", 5", 6-1/4" Materials: Normal strength, High strength Standard refers: BS64 Surface treatment: Black Application areas: British countries |
 |
BHON track bolt |
Size: Dia. 5/8"－1-1/2", Length1-1/2"－13" Grade: Gr2, Gr5, Gr8 Standard refers: AREMA & SAE J429 Surface treatment: Black, Zinc plated |
 |
BHDN track bolt |
Size: Dia. 15/16"－1-1/2", Length1-1/2"－13" Grade: Gr2, Gr5, Gr8 Standard refers: AREMA & SAE J429 Surface treatment: Black Application areas: North America |
 |
Day mark fish bolt |
Size: A30, B30, A37, B37, A50, B50, B40N Grade: 4.6, 5.6, 6.8, 8.8, 10.9 Standard refers: JIS E1107 Surface treatment: Black, Zinc plated, plain oiled |
 |
Russia scale fish bolt |
Size: 27x160 Material: Tensile stress 381KN Standard refers: GOST 11530 Surface treatment: Plain oiled |
 |
German standard track bolt |
Size: M22, L=110mm, 120mm, M24, L=105 to 200mm Grade: 4.6, 5.6 Standard refers: DIN5903-2 Type C Surface treatment: Zinc plated, hot dip galvanized |
 |
German standard track bolt |
Size: M20 Grade: 4.6, 5.6 Standard refers: DIN5903-1 Surface treatment: Zinc plated, hot dip galvanized Application areas: France, North Africa |
 |
British standard track bolt |
Size: 7/8" x BSF4-7/8”, or BSW4-1/8" Material: Normal Strength Standard refers: BS64 Surface treatment: Black |
 |
British standard track bolt |
Size: 15/16" x BSF4-1/2", or BSW4-7/8" Material: Normal strength Standard refers: BS64 Surface treatment: Black Application areas: British countries |
 |
BHON track bolt& Square head frog bolt |
Size: Dia.3/4"－1-1/8", Length1-1/2"－6-1/2" Grade: Gr2, Gr5, Gr8 Standard refers: AREMA & SAE J429 Surface treatment: Black |
 |
Heavy Hex Head Frog Bolts |
Size: Dia.3/4"－1-3/8", Length up to 30" Material: A325 Standard refers: ASTM A325 Surface treatment: Black, Zinc plated |
Anchor Bolt
 |
Insert bolt |
Size: M18, M22, L=135, 167, 175, 195mm Material: Q235, C35, C45, 35CrMo, 42CrMo Standard refers: NF F50-010 Surface treatment: Zinc plated, hot dip galvanized Application: Anchored in concrete sleeper, fastening together with nuts and washers for spring blade type fastening system. |
 |
Anchor bolt |
Size: M16 to M48, L=100 to 500mm Material: Q235, C35, C45, 35CrMo, 42CrMo Standard refers: DIN529, ISO898-1 Surface treatment: Oxide black, Zinc plated, hot dip galvanized, Dacromet, Sherardized Application: Anchored in concrete sleeper for K type fastening system. |
 |
B30 Bolt for Metro |
Size: Dia. 30mm Material: Low carbon steel Q235 Surface finish: Dacromet. |
