Screw briquette Press

Briquetting is a process during which biomass is compressed under high pressure and high temperature. The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The lignin content that forms naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus no artificial binder need to be used. So the ouput briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 1100~1300kg/m.

GCBC Series Biomass Briquetting Press

GCBC series briquetting machine is screw type design. GCBC Series Biomass Briquetting Press is a kind of high-end briquetting equipment. It is improved in both appearance design and structure design based on 6 years of research and manufacturing experience. Do not need to change Inner Former until input capacity exceed 1000 tons.

Raw Materials: sawdust, wood branches, wood residues, biomass wastes...

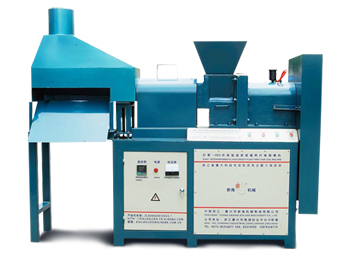

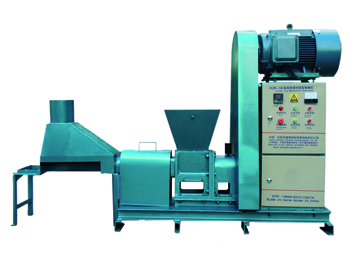

GCBC-I GCBC-II

Model GCBC- I GCBC-IIA GCBC-II
Input Raw Material Size (mm) 3-5mm
Output Capacity (kg/h) 180-210 300-500 300~350
Shapes of Briquettes Φ=40mm, 50mm, 60mm, 70mm
Motor Power (kw) 15kw, 380v, 6 Grades 18.5kw, 360v, 6 Grades 22 kW
Heating Range 280~350℃
Size of Briquettes Inside Hole Dia.16mm Dia.16mm Dia.18mm/16mm
Density of Briquettes 1.3T/m³
Weight (kg) 700kg 800kg 780 kg
Overall Dimension(mm) 2700*600*1600 mm 2000*600*1700 1500*1200*1600mm

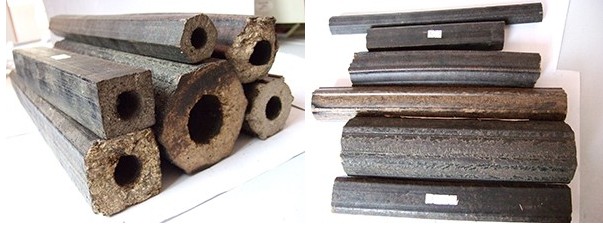

Final Wood Charcoal Briquettes

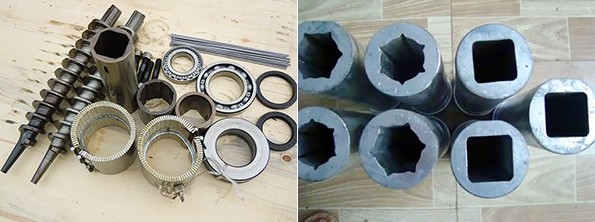

The shape of the biomass briquettes or charcoal briquettes can be customized by changing different forming parts. Feel free to tell us your specific needs if you want to make wood briquettes in other shapes.

Our Briquetting Press is in screw type, it produces cylindrical briquettes with a hole through the centre of the cylinder. The briquettes produced by a screw press is easily handled and stacked, and they have some advantages over those produced using the ram and die press. While the briquettes produced by a piston press are completely solid, screw press briquettes on the other hand have a concentric hole which gives better combustion characteristics due to a larger specific area. The screw press briquettes are also homogeneous and do not disintegrate easily. Having a high combustion rate, these can substitute for coal in most applications and in boilers.

Our wood charcoal briquette machine have automatic temperature control system, it is designed to produce high density wood or charcoal briquette as biofuel.

Features of GCBC Series Biomass Briquetting Press

  1. Heating section: we adopted two heat collars which are made from thick copper wires and are ceramic inside.
  2. An attractive feature on the forming hopper is that we added a movable plate on the bottom. It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it is jammed.
  3. Lubricating System: The gear box is equipped with lubricating system. Moreover, to oil the gear box properly, our briquette machine is designed with an exhaust function which can help maintain consistent air pressure.
  4. Auto Cutting System: It’s a simple piece of equipment composed of two steel plates. (Please see the picture), and briquettes can be automatically cut in uniformed lengths.

Heating section

Lubricating System

Auto Cutting System

GCBA Series Biomass Briquetting Press

biomass briquette extruder biomass briquette press biomass briquetting press
Briquetting Press Model GCBA I (11kw motor) Briquetting Press Model GCBA II (15kw motor)

Briquetting Press Model GCBA III (18.5kw motor)

Model GCBA I GCBA II GCBA III
Output kg/h 80-120 120-150 180-230
Motor Power (kw) 11kw(energy saving type with gear box) 15kw(without gear box) 18.5kw
Electric heater (kw) 1.5kw*3pcs 1.5kw*3pcs 2kw*3pcs
Weight(kg) 650kg 650kg 900kg
Overall dimension(mm) 1780*750*1290 1650*600*1260 1860*800*1360mm
Size of finished products Diameter:
30,40, 50mm
Diameter:
30,40,50mm
Diameter:
60,70,80,90,100mm

Working Principle of Biomass Briquette Press

Biomass briquetting is a process that biomass is compressed under high pressure and high temperature. In the working process of briquetting machine, the self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The lignin content that occurs naturally in biomass is liberated in briquette machine under high pressure and high temperature. Lignin serves as the natural glue in the biomass briquetting process, thus binding,compressing the biomss to form into high density briquettes in briquette press.
