Biomass Gasification

Biomass Gasification Suppliers

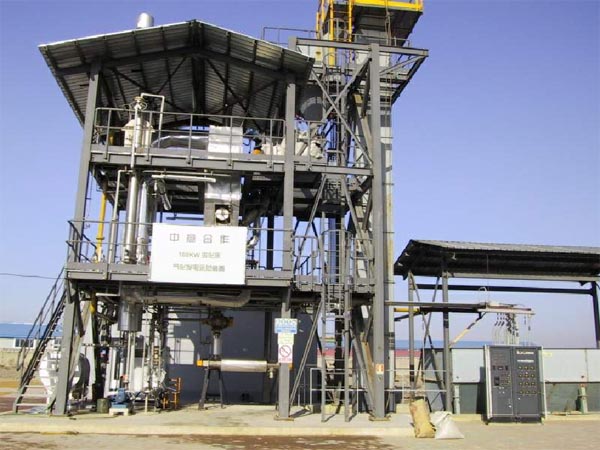

Biomass Gasification Suppliers/Small Scale Biomass Gasification

Biomass gasification for gas supplying or power system is a system which gasifies biomass and purifies the producer gas to produce clean combustible gas for cooking and heating use as well as for power generation, a gas container sized depending on the final use and pipelines as well as the indoor facilities (only in the case of cooking and heating) are necessary for this system.

Biomass Gasification Suppliers

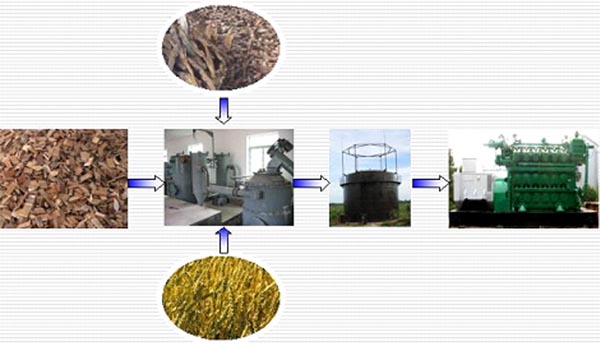

As shown in the following figures, biomass feedstock is first fed into the hopper of gasifier, then the feedstock will be gasified and the crude combustible gas is produced, by the cyclone separators, large particles in the producer gas will be removed, the scrubber will remove the fine particles and tar content in the producer gas, the producer gas then is drawn into the separator where the water droplets in the gas will be removed, with the biomass filter, the produce gas is further purified, a roots blower is used to pump the clean producer gas in the gas tank or gas container, with the underground pipelines, the producer gas can be finally used for every household. After the gas tank or gas container, the gas also can be introduced into IC engine for power generation as well.

Biomass available for the system

Almost all kinds of agricultural residues such as corn stalk, wheat stalk and etc. as well as the residues of forest industry are all available for the system, except for rice husk and rice straw due to their higher ash content which is around 25%.

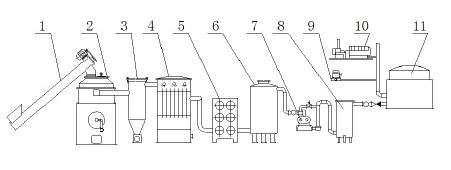

Flow chart of Biomass Gasification System

flow chart of biomass gasification system

1.screwer  2.gasifier  3.cyclone  4.scrubber  5.water separator 6.filter
7.roots blower  8.water seal  9.cooking range  10. IC engine  11. gas tank

Specification(for all available types)

Capacity 50-1000Nm3/h
Gas supplying capacity 50-1000 households
Power genenration 15-300kWe
Fuel consumption 25-500kg/h
Power consumption 3-16kW/h
Water consumption 300-400kg/week
Heat Value 4500~5500kJ/m3
Gasification Rate 70~75%
Efficiency for power generation 18~20%
Average life span of the system 10years
Tar and Ash Content in producer gas 20 mg/Nm3
