GC-S80AZ/-S120AZ-/S160AZ Intelligentized Color Sortex Machine for Sesame


SS-B AZ intelligentized Color Sortex Machine for Sesame is the newly developed type of machine incorporated with the most advanced technology in the world.
◆ The high-resolution image sensor of GC series color separator has been adopted in the assistance of hyper-speed computer analysis & processing system, therefore the impurities in the material can be precisely picked out.
◆ New-model touch screen operating board of GC series color separator, color display of large screen and broad angle of view, and users-friendly menu arrangement, which all facilitate an easy optimized adjustment of required accuracies.
◆ The newest software process of GC series color separator has been introduced in this type so as to realize the factual high accuracy sorting with much lower carryover rate.
◆ In addition to the traditional performance of GC series color separator e.g. double-sided photo sensor and secondary sorting, this type has been particularly installed with some intelligentized performance to simplify your operation.
◆ There are 2 sorting modes of GC series color separator:
Colored Sort: to get rid of the unshelled sesame, moldy sesame and other impurities in shelled and washed sesame;
Colored Sort Reverse: to get rid of the discolored or yellowish grains from black sesame.

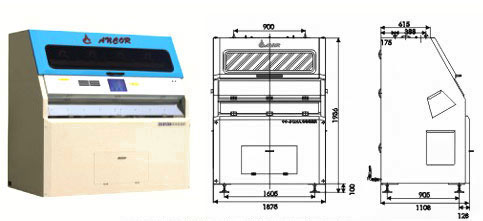

GC-S80AZ Intelligentized Color Sortex Machine for Sesame Seeds

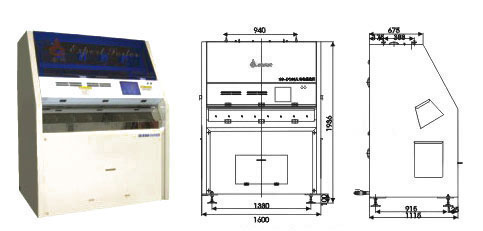

GC-S120AZ Intelligentized Color Sortex Machine for Sesame Seeds

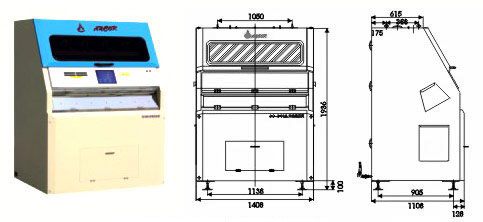

GC-S160AZ Intelligentized Color Sortex Machine for Sesame Seeds


Type

GC-S120AG

GC-S160AG

Channels

120

160

Output (t/h)

0.3~4.0

0.4~5.0

Sorting accuracy

>99.5%

>99.5%

Optimized carryover

<1:0.125

<1:0.125

Channels preset for primary and secondary sorting

90:30

120:40

Voltage (V)

~220V 50Hz

~220V 50Hz

Power of main machine (kw)

0.9

0.8

Power of heater (kw)

1.2

0.8

Pressure at air source(MPa)

≥0.6

≥0.6

Air consumption (L/min)

600~1500

800~2000

Weight (Kg)

900

750

Dimension(L×W×H)

1875×1108×1936

1600×1115×1946

Note: All the performance data listed of GC series color separator above has been referred to shelled white sesame (2% of contaminant) rice and the specific data is to be altered subject to the content of contaminants.
