Pellet Mill:

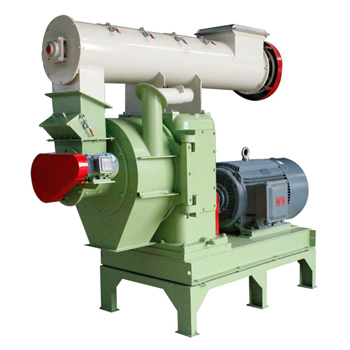

Features (please find the listed numbers in the pictures):
1. The machine utilizes aerodynamics technology to reduce the temperature of the pelletizing chamber to around 90°C. As a result the machine can operate continuously.
2. Timing feeder can control the feed to reduce the blockage.
3. The body is more durable because it is comprised of ductile iron.
4. Capacity increased by adding another force feeder made from stainless steel. This increases the feed spread area.
5. It uses the improved U type screw conveyor. Its adjustable feeding speeds allow for continuous feeding without blockage.
6. It is driven by high precision gears.
7. Key working parts become stronger after modifying the material with heating processing technology. Main parts are forged. The processing capacity of our ring die is 800-1000MT. The ring die is clasped by quick-discharge clip.

pellet-millPellet  Mill
Other features:
1. Uses imported bearing (NSK) and seals fort better transmission, stable operating, and less noise.
2. Has advanced compensation serpentine-spring coupling which are safer, provide a new structure, and lower failure rate during operation.
3. We hold one patent on ring die and 4 utility model patents on pellet mills.
4. High efficient, lower power consumption, stable operation and production.
Main Technical Data:

 die for ring die pellet press   flat die pelletizing

Model Power
(KW)
Packing Size
(MM)
Net Weight
(Kg)
Capacity (Ton/Hr)
Sawdust/Stalks
NPM 420 Main Motor 90 2500*1100*1900(2300) 3T 1.2~1.5/1.5~2.0
Feeding Machine 1.5
Conditioner Motor 2.2
  Main Motor 110 2800*1100*1900(2300) 3.7T 1.5~1.8/2.0~2.5
NPM 508 Feeding Machine 1.5
  Conditioner Motor 2.2
